1. Wave Service Overview

Colt Wave services provide customers with a fully managed, high quality end-to-end transparent data transmission service operating at speeds from 1G to 400G.
Wave services enable high bandwidth network connections to be deployed quickly and easily over Colt’s high capacity, scalable optical infrastructure. This enables customers to leverage market opportunities and meet the challenge of the rising bandwidth demand driven by the Internet, richer application environments and cloud computing.
Colt’s network supports the leading industry-standard optical interfaces and protocols and is based on a redundant and diverse fibre architecture to meet the demands for ever increasing performance and resilience. Wave services are available seamlessly across the Metro, National and International areas in 32 countries, 51 metro city networks and over 250 optical PoPs. The Colt network connects over 1100 data centres and 31,000 enterprise buildings globally, including many major business locations.
Optical DC Net is a targeted inter-data centre proposition within the Wave product that provides aggressive lead times for services up to 400G between over 200 key data centres in Europe and Asia.
Colt operates a 2000 000 + km long distance network, supported by over 20,000 km of metro fibre assets. Our ability to provide services end-to-end means that we can offer customers a high quality, cost-effective solution, backed by comprehensive Service Level Agreements (SLAs) and award-winning customer support.
Independent recognition with numerous industry awards and a customer base that includes the world’s leading financial institutions, carriers and cloud providers means customers can be confident when they entrust their network to Colt.

2. Benefits

Colt Wave services provide many benefits to our customers:

2.1 Business Growth

With over 12.8Tb of ‘on-demand’ capacity on its optical network, Colt can provide customers with the additional bandwidth to meet business demands efficiently and without lengthy delays.

2.2 Agility

Customers can respond quickly to opportunities and challenges due to Colt’s faster lead times. Services up to 400G can be provisioned, meaning customers can get the capacity they need when they need it.

2.3 Strategic Expansion

Directly connecting over 1100 data centres and 31,000 business premises, customers can easily expand their network to include new locations as the business demands.

2.4 Cost Efficiency

Colt’s high capacity network offering direct DC to DC connections enables Colt to provide attractive commercial offers and support customers in reaching the scalable cost per Mbit they need, regardless of where they are on the capacity requirement curve.

2.5 Business Continuity

Colt delivers its services over a wholly owned and operated infrastructure, thus ensuring the highest levels of Service Availability and backed by Colt’s leading Service Level Agreement. As well as targets for delivery, service availability and time-to-repair, the SLA also includes performance guarantees.
A redundant and diverse network architecture enables Colt to provide a comprehensive suite of resilience options, allowing customers to select the resilience solution that best meets their particular chosen balance of cost, performance and risk.

2.6 Security

When the option for network encryption is selected, Wave services can act as a key component of a customer’s holistic security strategy. By helping to reduce the chances of data being lost or stolen in a readable form, the associated business risks can be mitigated.

2.7 Performance

Colt’s state-of-the-art optical network provides guaranteed latency, complete transparency, and zero jitter and frame loss.

3. Service Description

3.1 Technology

Colt Wave services provide high-capacity, point-to-point Layer 1 transparent optical data services between two locations. They are available on a Metro, National or International basis. Bandwidths of 1G, 2G, 4G, 8G, 10G, 16G, 32G, 100G and 400G are provided, using industry-standard presentation/interfaces and connector types.
Optical technologies are used in conjunction with OTN, Mux/Demux or muxponder equipment. They provide deterministic performance and are fully transparent to higher level OSI Layer 2, Layer 3 and above protocols. Latency is not subject to variation and is determined largely by the fibre distance between the two end-points. Frame loss/bit error rates and jitter are at the lowest possible technical levels, as befitting an optical multiplexed network.
Wave Services are based on an optical DWDM (Dense Wave Division Multiplexing) core network. In the specific cases of the transatlantic, trans-Pacific, the North America and International Asia networks, leased OTU4 capacity is used in conjunction with Colt’s own optical equipment.In cases where DWDM equipment is not already installed in the required service location, the local connection from Colt’s optical service point to the customer site may be made via a fibre extension within the metro area. In order to provide services over longer metropolitan distances from designated service points and deal with higher signal losses, clear channel optical equipment or CWDM may also be used in the ‘last mile’. Optical Ethernet equipment using customer-dedicated fibre and electronics is also available in the specific case of 1G Ethernet and 10G LAN PHY services.
The precise deployment, along with network route details and other relevant technical information will be determined during the Sales and Pre-Sales process.
Services can be provided on an unprotected (single fibre path) or protected (dual path) basis. Additional resilience features include the option for a customer-defined route, whereby the customer can stipulate the network route for an individual service and full service diversity between a pair of unprotected services.
Colt is able to provide services up to 400G across its entire terrestrial optical footprint, including European sub-sea routes, regardless of the specific optical platform available in a given city location.

3.2 Topology

Colt Wave services are point-to-point services.

3.3 Platforms

3.3.1 General

In some cases, the customer requirement may mandate the use of a specific technology platform. Flagship 10G LAN PHY, 100G Ethernet and 400G Ethernet services will be provisioned on the Optical Express network (see below) by default where it is available.

3.3.2 Intercity Optical Express Network

A state-of-the-art network based on Ciena/Nokia technology, referred to as the Intercity Optical Express Network, spans 42 cities and 30+ countries, with integrated metro optical networks in 20 cities. Metro optical networks are seamlessly integrated with the long-distance network using this common platform. With 20Tb+ of capacity, it directly connects key service locations such as data centres across the Metro, National and International areas in Europe and Asia’s key markets.
Bandwidth is configured in 100G up to 800G coherent channels, thus enabling the rapid and easy provisioning of large amounts of capacity with improved levels of service availability and faster delivery times.

3.3.3 Sub-Sea and North American Leased Capacity Networks

This optical network uses leased 100G OTU4 capacity between Europe and the USA (the transatlantic network), between countries within Asia (the Asia international network) and between Asia and North America (the trans-Pacific network). Leased capacity is integrated with Colt’s own DWDM equipment to provide optical services globally at 1G and 10G.
Colt’s fibre optic network links within Europe between Ireland, the United Kingdom, Scandinavia and mainland Europe are a part of the European terrestrial network and not part of the sub-sea network.

3.4 Bandwidth & Interface Options

Colt Wave Services provide fully dedicated bandwidth and are full-duplex, protocol- independent services, which means customers can use the full amount of the bandwidth supplied in either direction.
Those 10G, 100G and 400G services delivered on Ethernet interfaces are compliant with the IEEE 802.3-2015 MDI specification (Medium Dependant Interface), as defined in the UNI specification. In the case of Ethernet presentations, auto-negotiation must be enabled according to IEEE 802.3-2015. In the case of non-Ethernet presentations, the bandwidth and full duplex mode operation are defined in the relevant ITU standard.
Colt Wave Services support a wide range of optical bandwidths and interface standards. A sub-set of the standard Wave options are offered on the part of the optical network built using leased capacity. The available bandwidths are:

Bandwidth	Signal Type	Colt Europe Metro National International	Colt Asia Metro National	Colt Asia International	Asia – USA Europe USA National1
1G	Ethernet
1G	Fibre Channel
2G	Fibre Channel
4G	Fibre Channel
8G	Fibre Channel
10G	Ethernet (LAN PHY)
	Ethernet (WAN PHY)
	OTU2
	OTU2e
	Fibre Channel
16G	Fibre Channel
32G	Fibre Channel
100G	Ethernet
100G	OTU4
400G	Ethernet

Table 1. Wave bandwidth options

3.5 Interface Settings – Terrestrial Optical Networks

Colt’s terrestrial networks refer to the whole of the European network (including the links between Ireland, the UK, Scandinavia and mainland Europe) as well as Metro and National services in the Asia region.
The full range of interfaces potentially available are shown in the table below:

Speed	Presentation Interface	Fibre type	Regional Availability	Max Distance
1 G	1000BASE-T	N/A	Asia	100m
1 G	1000BASE-SX	MM 850nm	All	550m
1 G	1000BASE-LX	SM 1310nm	All	5km
1 G	Fibre Channel FC100-SM-L 2	SM 1310nm	All	4km
1 G	Fibre Channel FC100-MX 2	MM 850nm	All	70m
2 G	Fibre Channel FC200-SM-L 2	SM 1310nm	All	4km
2 G	Fibre Channel FC200-MX 2	MM 850nm	All	70m
4 G	Fibre Channel FC400 SM-M 2	SM 1310nm	All	4km
4 G	Fibre Channel FC400 MX 2	MM 850nm	All	70m
8 G	Fibre Channel FC800 SM-L 2	SM 1310nm	All	10km
8 G	Fibre Channel FC800 MX-SN 2	MM 850nm	All	100m
10 G	10GBASE-LR (LAN PHY)	SM 1310nm	All	10km
10 G	10GBASE-ER (LAN PHY)	SM 1550nm	Europe	40km
10 G	10GBASE-SR (LAN PHY) 2	MM 850nm	All	275m
10 G	10GBASE-LW (WAN PHY)	SM 1310nm	Europe	10km
10 G	10GBASE-EW (WAN PHY)	SM 1550nm	Europe	40km
10 G	10GBASE-SW (WAN PHY) 2	MM 850nm	Europe	275m
10 G	OTU2 VSR2000-2R1 (SR1) 2	SM 1310nm	All	2km
10 G	OTU2 VSR2000-2L1F 2	SM 1310nm	All	2km
10 G	OTU2 P1S1-2D2b (IR2)	SM 1550nm	Europe	40km
10 G	OTU2 P1S1-2D2b (IR2)	SM 1550nm	Europe	40km
10 G	OTU2 P1L1-2D2 (LR2)	SM 1550nm	Europe	80km
10 G	OTU2e VSR2000-2R1 (SR1) 2	SM 1310nm	All	2km
10 G	OTU2e VSR2000-2L1F 2	SM 1310nm	All	2km
10 G	OTU2e P1S1-2D2b (IR2)	SM 1550nm	Europe	40km
10 G	OTU2e P1L1-2D2 (LR2)	SM 1550nm	Europe	80km
10 G	Fibre Channel FC1200-SM-L 2	SM 1310nm	All	10km
10 G	Fibre Channel FC1200 MX-SN 2	MM 850nm	All	100m
16 G	Fibre Channel FC/1600-SM-LC-L 2	SM 1310nm	All	10km
16 G	Fibre Channel FC/1600-SN 2	MM 850nm	All	100m
32 G	Fibre Channel FC/3200-SM-LC-L 2	SM 1310nm	All	10km
32 G	Fibre Channel FC/3200-SN 2	MM 850nm	All	100m
100 G	100GBASE-LR4	SM 1310nm	All	10km
100 G	100GBASE-SR4 1,2	MM 850nm	Europe	100m
100 G	OTU4 ITU-T G.959.1.4I1-9D1F	SM 1310nm	All	10km
400 G	400GBASE-FR4 2	SM 1310nm	All	2km
400 G	400GBASE-LR4	SM 1310nm	All	10km

Table 2. Wave interface options

1 – Multi-fibre parallel optics must be used
2 – Not available with extended fibre ‘last mile’ delivery

In large and structured environments such as data centres, the required presentation may be conditioned by factors beyond Colt’s direct control, such as the distance between the Colt terminating equipment and customer equipment and the specification of intermediate ‘meet me’ cross-connect cabling facilities.

3.6 Interface Settings – Leased Capacity Network

The following optical interfaces are available on a standard basis over the leased capacity optical network:

Bandwidth	Presentation Interface	Fibre type	Regional Availability	Asia – USA Europe USA National1
1 G	1000BASE-LX	SM 1310nm	All	Yes
10 G	10GBASE-LR (LAN PHY)	SM 1310nm	All	Yes
10 G	OTU2 VSR2000-2R1 (SR1)	SM 1310nm	All	Yes
10 G	OTU2e VSR2000-2R1 (SR1)	SM 1310nm	All	Yes

Table 3. Wave interface options on the leased capacity network

USA National services are subject to special approval.

3.7 Leased Capacity Network – Interfaces Subject to Special Approval

The following interface options may be available upon special request and subject to Pre- Sales approval. The ability to provide these options may be affected by factors beyond Colt’s control and cannot therefore be guaranteed as a standard feature.

Speed	Presentation Interface
10 G	10GBASE-ER (LAN PHY)
10 G	10GBASE-LW (WAN PHY)
10 G	10GBASE-EW (WAN PHY)
10 G	OTU2 P1S1-2D2b (IR2)
10 G	OTU2 P1L1-2D2 (LR2)
10 G	OTU2e P1S1-2D2b (IR2)
10 G	OTU2e P1L1-2D2 (LR2)

Table 4. Wave – interface options subject to special approval

3.8 Copper and Fibre Interface Options

Connector type	Regional Availability
RJ45	Asia
LC-Duplex	All
SC-Duplex All	All
FC/PC	All
MPO/MTP	Europe

Table 5. Interface Options

Please Note! The availability of a specific connector type in a given building may be affected by a number of factors:

Data Centres and other Structured Building Environments

In structured environments such as data centres, a cross-connect is normally required between either Colt’s equipment area or the ‘meet-me’ interconnection facility and the customer end-point. In cases where the customer is responsible for obtaining this cross- connect, it is also the customer’s responsibility to request the correct connector type for their own end-point within the context of any policy or infrastructure constraints imposed by the building operator or the built infrastructure environment.
In cases where Colt orders the necessary cross-connect on the customer’s behalf, the selected connector will reflect that required at the customer end-point of the cross-connect and not Colt’s terminating equipment in its own facilities or meet-me room presentation point. Connector availability may be constrained by policy standards dictated by the third-party data centre provider that controls the ‘meet-me’ interconnection room environment and provisioning of in-building cross-connects.

Enterprise Sites

In enterprise sites Colt may provide its services from a common equipment area (CEA) to the requested location using pre-provisioned structured internal cabling to a Colt patch panel within either a Colt or customer rack. Colt normally adopts the LC connector type in these installations. A customer that requires a different connector type from that supported by the fixed infrastructure should use suitable fibre-optic fly leads to effect the necessary conversion between the Colt patch panel presentation and their own equipment.

3.9 Copper and Fibre Interface Specifications

Connector types	Fibre Type	Cable
RJ45	N/A	Cat 5e or above
LC-Duplex, SC-Duplex, FC/PC	Multi-Mode 850nm	50μ multi-mode fibre (MMF)
LC-Duplex, SC-Duplex, FC/PC	Single-Mode 1310nm	10μ single-mode fibre (SMF)
LC-Duplex, SC-Duplex, FC/PC	Single-Mode 1550nm	10μ single-mode fibre (SMF)
MPO/MTP1 (SR4 interface only)	Multi-Mode 850nm	50μ multi-mode fibre (MMF) (4 x Rx/Tx pairs)

Table 6. Interface Specifications

1 – Multi-fibre parallel optics must be used

3.10 Resilience Options

3.10.1 Architecture

Colt’s optical platforms are built to a redundant and diverse design, thus ensuring that a wide range of resilience options are available to customers in order to support their business continuity requirements.
Colt optical PoPs are usually built using a dual-chassis approach with each PoP being served by at least two separate fibre routes. The ‘East’ and ‘West’ directions terminate in separate chassis so that failure of an individual chassis does not lead to failure of diversely routed services.

Strategic Colt cities may have several geographically separate nodes, each with its own redundant architecture. This enables services to be routed diversely from one city to another using separate city PoPs.
Depending on the location, area and circuit speed, Colt Wave services can be provided as Unprotected, Backbone Protected or Protected.

3.10.2 Circuit Resilience Options

Unprotected – an Unprotected service is a single circuit with a single client interface and single worker path across the network.
Protected – a protected service is a single circuit with a single client interface, but has a fibre protection path in addition to the main worker path. Automatic failover between fibre paths provides protection switching as well as automatic restoration once the worker path is available again. A protected service does not absolutely guarantee the absence of other single points of failure (SPOFs) in the terminating PoP or site. The level of separacy of the worker and protection fibre paths can be confirmed to the customer with a KMZ network route diagram.
Backbone Protected – the service is protected in the ‘core’ network but remains unprotected in the ‘last mile’ metro access. This feature is only available as standard in Asia for services up to 10G and is subject to bespoke approval in Europe.

3.10.3 Diversity

The Diversity feature always refers to the provision of two services in a diverse configuration from one another, with each service following a designated network route across the optical network. The diversity feature is always supported by a KMZ route diagram which confirms the agreed routing of the two services.
Colt offers diversity solutions in two ways – a standard service offering on the IQ Network or via a design-led approach.

3.10.3.1 Standard Diversity Offer

The standard offer has a defined service specification, scope and list pricing. It is available only between sites directly connected to the optical IQ Network. In this offer, the network routes proposed will be the default primary and alternate IQ Network paths between the requested end-points. These can be provided by Colt for confirmation and acceptance with the customer. A customer that orders two diverse services based on the standard offer is therefore accepting the routing of these pre-built network paths as demonstrated by the Colt- provided KMZ route maps in the proposal. Although these routes are largely diverse, the customer is explicitly accepting any exceptional cross-overs or SPOFs that may exist in the default routes between their chosen A and B-Ends.
The service specification for the standard diversity offer is shown in the table below:

Feature	Description
Scope	IQ Net Data Centres (directly equipped with WDM equipment)
Number of circuits	2 x Wave (Each ordered as separate individual circuits)
Redundant Termination	Redundant service termination using dual WDM chassis, dual WSS, dual ROADM node
Fibre Path Diversity	Fibre path diversity as per KMZ tool output – IQ Net default primary and alternate paths
Coverage	Metro, National, International – Europe
Optical Presentations	All standard Wave service types (Ethernet, OTU etc.) supported
KMZ Route Map	Yes – mandatory – as per KMZ output of the RTD Tool
Building Entry Points	Site dependent – single or dual entry depending on build of the IQ Network
PoP Power Configuration	Redundant and Protected
Rack/Room	Single rack / single room in data centre PoP
Service Level Agreement	The standard SLA for each applicable service in the pair applies

Table 7. Diversity Standard Offer – Description

It should also be noted that the standard offer exploits the building entry points and internal building cabling systems inherent to the IQ Net platform that defines the offer scope. It does NOT mandate the construction of new building entry points or diverse internal building cabling. These are separate orderable and chargeable features that must be evaluated via the design process. The standard offer is also shown diagrammatically below:

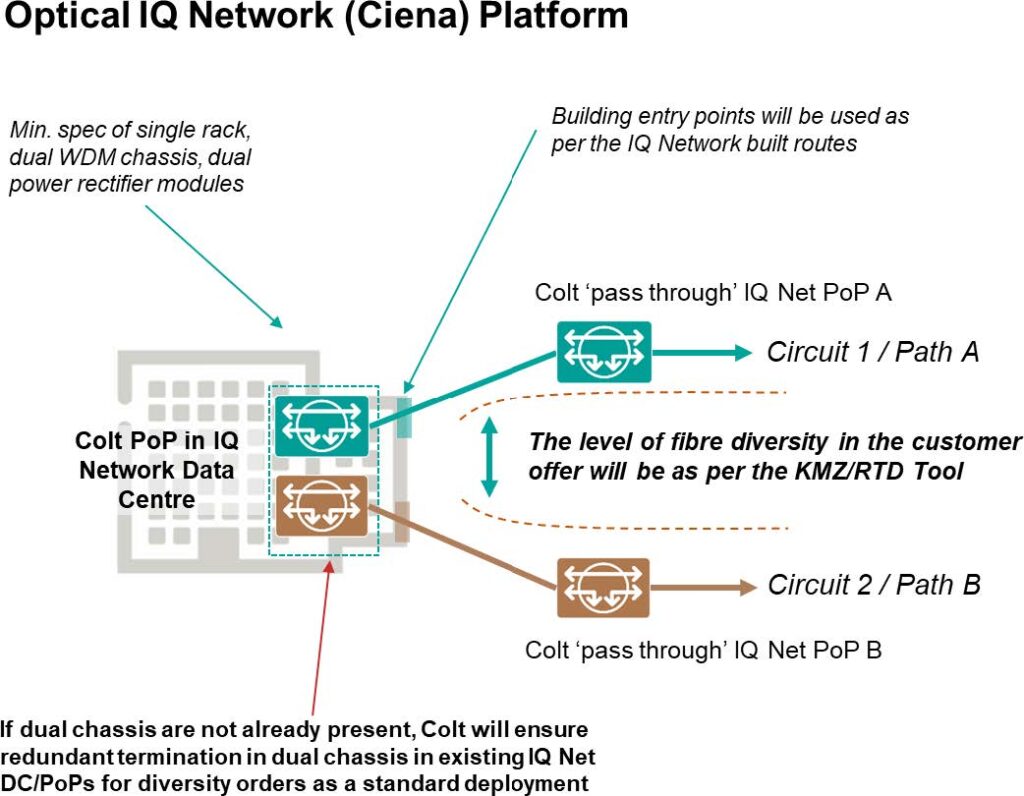

Figure 1. Standard Diversity Offer – Overview

3.10.3.2 Designed Solutions

Requests that fall outside the scope and service specification of the standard diversity offer require the engagement of a Pre-Sales Engineer to create a design, followed by solution pricing.
Potential reasons for a design being required may include:

• Requests for non-IQ Net sites
• Different routing requirements from the defaults
• Different end points (different buildings) at either the A or B end
• Additional diversity features not mandated by the standard service offer definition
• Non-standard components or deployments
• Additional costs necessary to the solution

All designs are supported by a design document in addition to the associated KMZ route maps.
Additional resilience features that can be provided as part of a Wave service, in common with other parts of the Colt product portfolio include:
Dual Building Entry – Establish a second building entry point for the first time or indicate that a service order should use existing multiple entry points.
Customer-defined routing –A single service can be provided according to a defined network route agreed with the customer.

Customers are responsible for ensuring they have appropriate levels of resilience in their network to avoid serious service disruption in the event of an outage on a single wavelength.

3.11 Network Encryption

Encryption is available as an additional feature enhancement for Colt Wave services delivered using the Colt IQ Network. Operating at layer 1, network encryption is an integral component of the service and fully transparent to Ethernet, IP and other network protocols whilst encrypting all data between the service end-points.
Colt’s optical layer encryption services support the very highest levels of performance and security in combination. Being embedded in the optical hardware, they provide scalable, ‘always on’ FIPS 140-2 – certified, AES-256 encryption for high capacity backbone networks with uncompromising wire-speed performance.
Data can be encrypted across the extensive coverage footprint that the Colt IQ Network provides, whilst supporting corporate requirements such as secure customer encryption key management and physical control and security of the encryption hardware itself through location in the customer’s own secure rack environment.
The encryption option is available for the standard optical interfaces supported by Colt Wave in each region.
When ordering Wave with network encryption, customers may choose between the following encryption-specific options:

• The location of the encryption hardware: Customer rack or Colt Equipment Area (CEA subject to Colt approval)
• Encryption key management responsibility: Customer managed or Colt managed

3.12 Performance Reporting

Online Service Performance Reporting is available as a chargeable option within the Wave service portfolio. Customers can access these through the Colt Analytics web portal where up-to-date information on how their service is performing can be retrieved. The service information is stored for an extended period allowing historical reporting and trend analysis to be performed. Reports are available on a network port basis and the following statistics can be viewed:

• Port Availability
• Port Traffic (for Ethernet – to be checked for others)

Online Performance Reporting is available on the Ciena/Nokia-based IQ Network platform for a sub-set of the available Wave service types and bandwidths:

Signal Type	Bandwidth	Available as standard
Ethernet	1G
Ethernet	10G
Ethernet	100G
Ethernet	400G
Fibre Channel	1G
Fibre Channel	2G
Fibre Channel	4G
Fibre Channel	8G
Fibre Channel	10G
Fibre Channel	16G
Fibre Channel	32G
WAN PHY	10G
OTU2	10G
OTU2e	10G
OTU4	100G

Table 8. Availability of Performance Reporting by Service Type and Bandwidth

The historical data sampling interval is currently every 15 minutes. Data is stored for up to one year although some data granularity is removed. The sampling interval and storage period are not normally subject to change but remain at Colt’s sole discretion.
A separate user guide provides more information about viewing Wave services within the online portal.

3.13 Regional Product Feature Availability

Product Feature	Colt Europe Metro National International	Colt Asia Metro National	Colt Asia International	Asia – USA – Europe USA National1
Unprotected
Backbone Protected3
Protected
Network Encryption
Diversity
Customer-defined Routing
Dual Building Entry2
Proactive Fault Notification
Performance Reporting

Table 9. Wave product feature availability

• USA National services are subject to special approval.
• Availability subject to the characteristics of specific buildings
• Feature available in Asia and subject to bespoke approval in Europe

3.14 Management

Colt Wavelength Services are offered as managed services. Management information is extracted from Colt’s on-site equipment using a network management link to a Colt Network Management Centre (NMC). This enables Colt to carry out remote monitoring, configuration, troubleshooting and testing and reduces the need to send technicians to the customer site.

4. Colt Network Coverage

Colt’s secure and reliable network provides unrivalled reach across 30+ countries with fibre- based metropolitan area networks (MANs) in 51+ major cities. More than 30k+ buildings are directly connected using Colt fibre to this network, and over 1100+ data centres.
Please contact your Colt Sales representative for additional coverage and the latest updates.

4.1 European coverage

Colt’s long-distance optical pan-European transmission network spans over 55,000 km of fibre-optic infrastructure, in conjunction with over 9,000 km of metro fibre. Wave services are provided within 14 countries: Austria, Belgium, Denmark, France, Germany, Italy, Luxembourg, Netherlands, Portugal, Republic of Ireland, Spain, Sweden, Switzerland and the United Kingdom.
Colt also has optical PoPs in the Czech Republic, Slovakia, Poland, Hungary, Bulgaria, Serbia, Croatia, Romania, Finland and Norway, connecting key data centres in these locations with the rest of its long-distance pan-European transmission network.

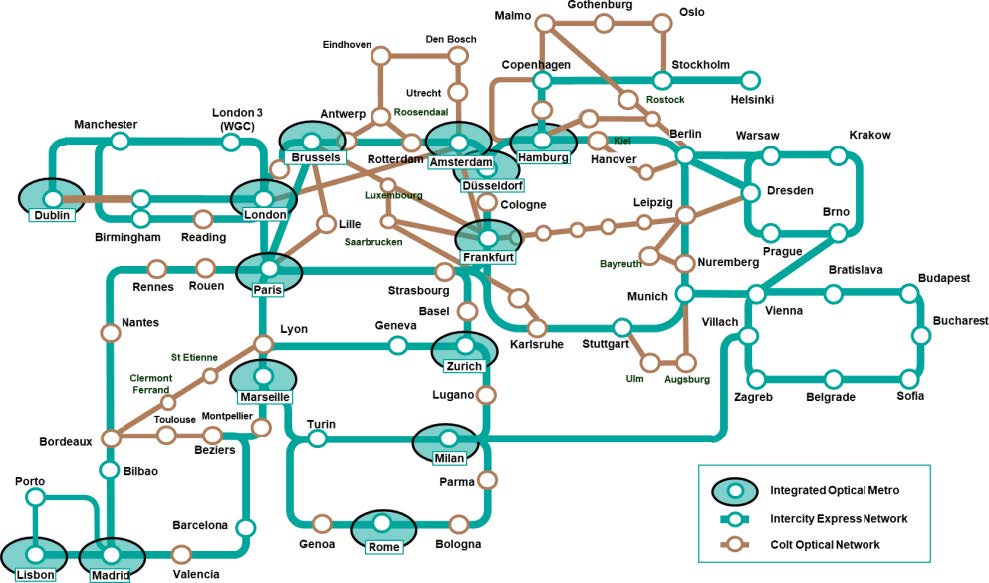

Figure 2. European Optical Network

4.2 Asia – Metro and National coverage

Colt Asia operates a long-distance transmission network between Tokyo and Osaka in Japan, including optical access PoPs in the major international cable landing stations. There are also Optical Express Networks in Hong Kong and Singapore. Wave services up to 400G are available in all 3 countries:

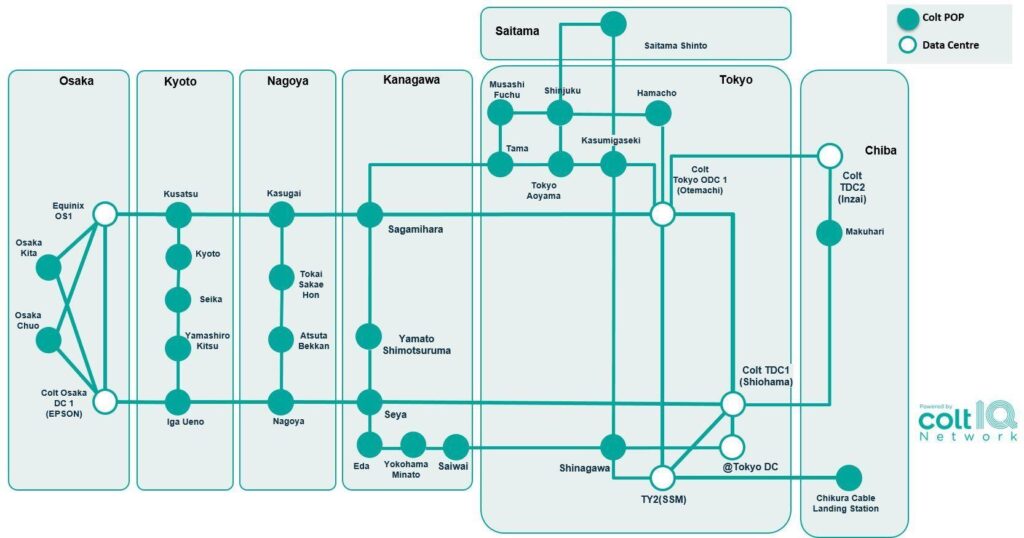

Figure 3. Optical Express Network in Japan

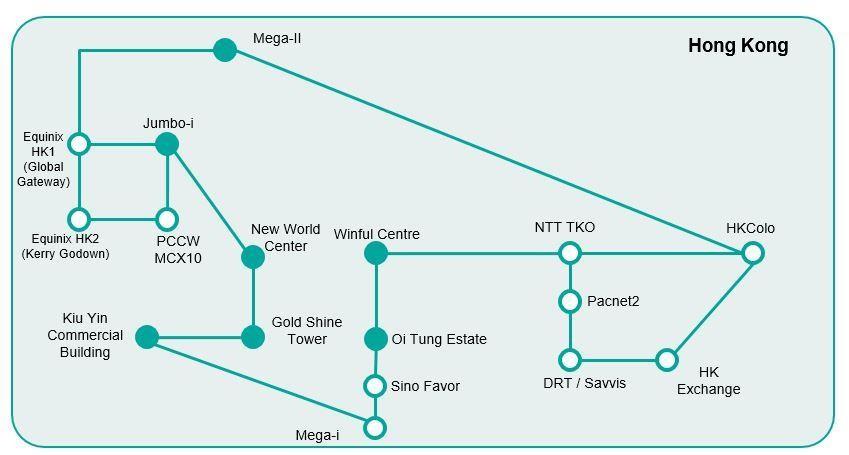

Figure 4. Optical Express Network in Hong Kong

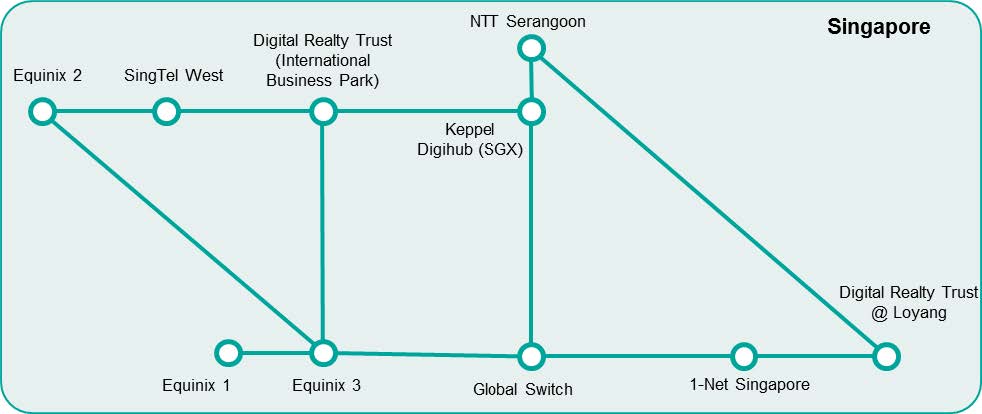

Figure 5. Optical Express Network in Singapore

4.3 Asia International Sub-Sea Network

The international network connecting Japan, Hong Kong and Singapore is constructed using sub-sea OTU4 optical leased capacity links. It also includes connections from Singapore directly to the European LDN at Milan and Marseilles. The range of bandwidth and interface options supported on Colt’s leased capacity network are detailed in section 3.4 :

OTU4 Link	Cable System	Sea Cable A-End	Colt A-End	B-End
Milan – Singapore	AAE-1	Infracom PAL E	Colt Milan LAB	Global Switch
Marseille -Singapore	SMW-5	Interxion MRS1	Interxion MRS1	Equinix SG3
Osaka – Singapore	APG	Shima CLS	Osaka EPSON	Global Switch
Osaka – Hong Kong	TGN-IA	Toyohashi CLS	Osaka OS1	Mega-i
Hong Kong – Singapore	EAC-C2C	HKCS2 TKO	HK Colo	Global Switch
Hong Kong – Tokyo	SJC	HK Colo	HK Colo	TDC1
Singapore – Tokyo	SJC	Equinix SG3	Equinix SG3	TY6 IBX
Singapore – Hong Kong	SJC	Equinix SG3	Equinix SG3	Mega-i

Table 10. Asia International Cable System

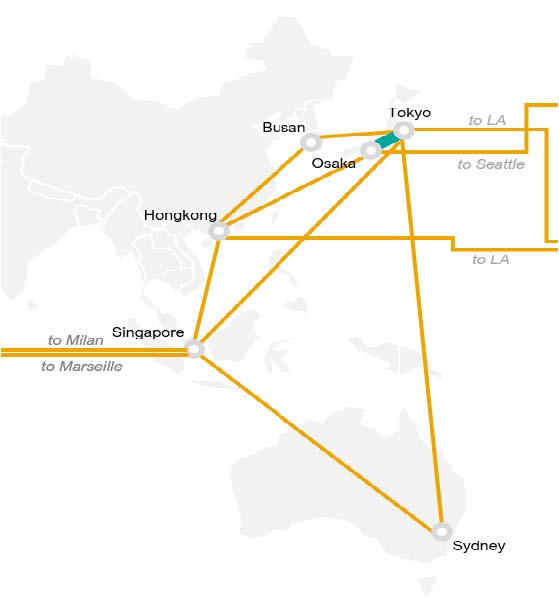

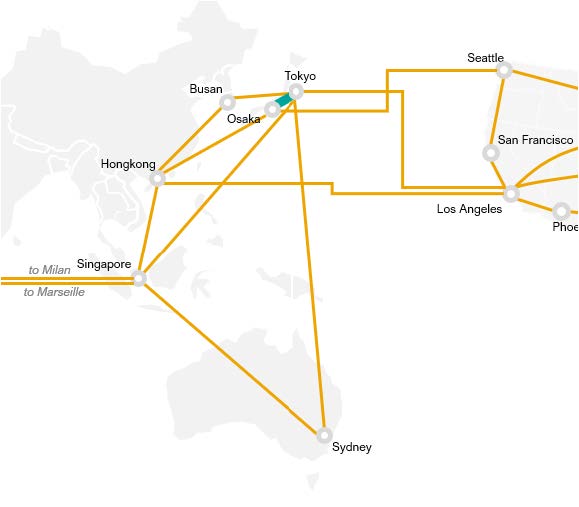

Figure 6. The Asian International Sub-Sea Network

4.4 Trans-Pacific Sub-Sea Network

The international network connecting the Asia Network with the USA is constructed using sub-sea OTU4 optical leased capacity links. The North American network provides onward connectivity across the USA and also to Europe. The range of bandwidth and interface options supported on Colt’s leased capacity network are detailed in section 3.4 :

OTU4 Link	Cable System	Sea Cable A- End	Colt A-End	B-End
Tokyo – Los Angeles	Unity	Chikura CLS	Tokyo SIO	Los Angeles One Wilshire
Osaka – Seattle	TGN-P South	Toyohashi CLS	Osaka OS1	Seattle Westin Building
Hong Kong – Los Angeles	AAG	Hong Kong Mega-i	Hong Kong Mega-i	Los Angeles One Wilshire

Table 11. Trans-Pacific Cable Systems

Figure 7. The Trans-Pacific Network

4.5 Transatlantic Sub-Sea Network

The international network connecting North America with Europe is constructed using sub- sea OTU4 optical leased capacity links. The North American network provides onward connectivity from across the USA to Europe. The range of bandwidth and interface options supported on Colt’s leased capacity network are detailed in section 3.4 :

Photonic Link	Cable System	CLS A-End	CLS B-End
London – New York	Grace Hopper	Bude	Bellport
London – New York	Yellow	Bude	Bellport
London – New York	AC1-South	Whitesands	Brookhaven
Paris – NJ/Wall	Apollo South	Lannion	Wall/NJ
Paris – VA/Richmond	Dunant	St. Hilaire	Richmond/VA

Table 12. Transatlantic Cable Systems

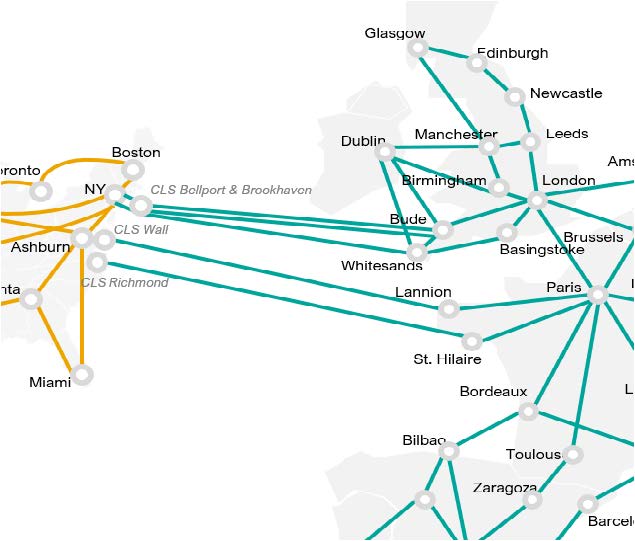

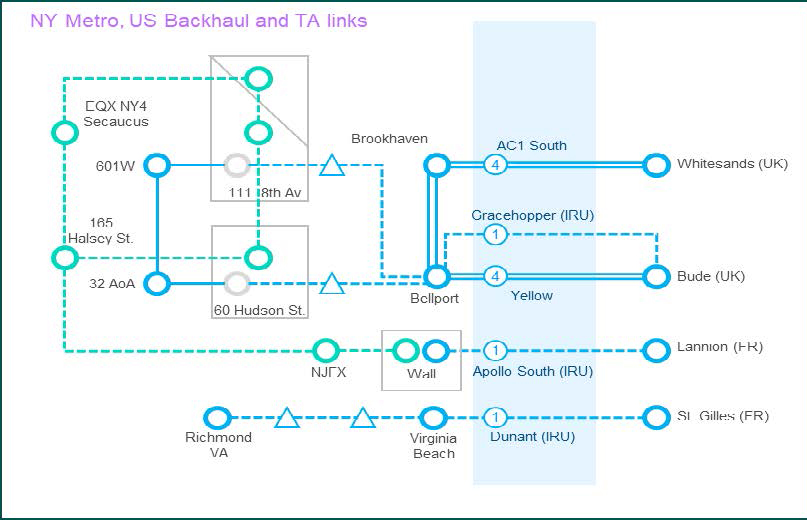

Figure 8. The Transatlantic Network

4.6 North American Network

The North American network is constructed using OTU4 optical leased capacity links between key data centres across the continent and also with fully integrated, sub-sea capacity links to either Europe or Asia. The range of bandwidth and interface options supported on Colt’s leased capacity network are detailed in section 3.4 :

OTU4 Link	Capacity	A-End	B-End
Chicago – New York	OTU4	Chicago Equinix CH4	DRT NYC1 111 8th
New York – Ashburn	OTU4	DRT NYC2 60 Hudson	Equinix DC11
Atlanta – Ashburn	OTU4	DRT ATL2	Equinix DC11
Dallas – Atlanta	OTU4	Equinix DA6	DRT ATL2
Dallas – Chicago	OTU4	Equinix DA6	Equinix CH4
Phoenix – Dallas	OTU4	Phoenix IO One	Equinix DA6
Los Angeles – Phoenix	OTU4	Los Angeles One Wilshire	Phoenix IO One
Los Angeles – San Jose	OTU4	Los Angeles One Wilshire	Equinix SV5
San Jose – Seattle	OTU4	Equinix SV5	Seattle Westin Building
Chicago – Seattle	OTU4	Equinix CH4	Seattle Westin Building
New York – Boston	OTU4	DRT NYC1 111 8th	Boston One Summer
New York – Boston	OTU4	Boston One Summer	Equinix TR2
Chicago – Toronto	OTU4	Equinix CH4	Equinix TR2
Miami – Ashburn	OTU4	Equinix MI1	Equinix DC11
Atlanta – Miami	OTU4	DRT ATL2	Equinix MI1
New York – New York	N/A (Fibre)	DRT NYC1 111 8th	DRT NYC2 60 Hudson

Table 13. North American Cable Systems

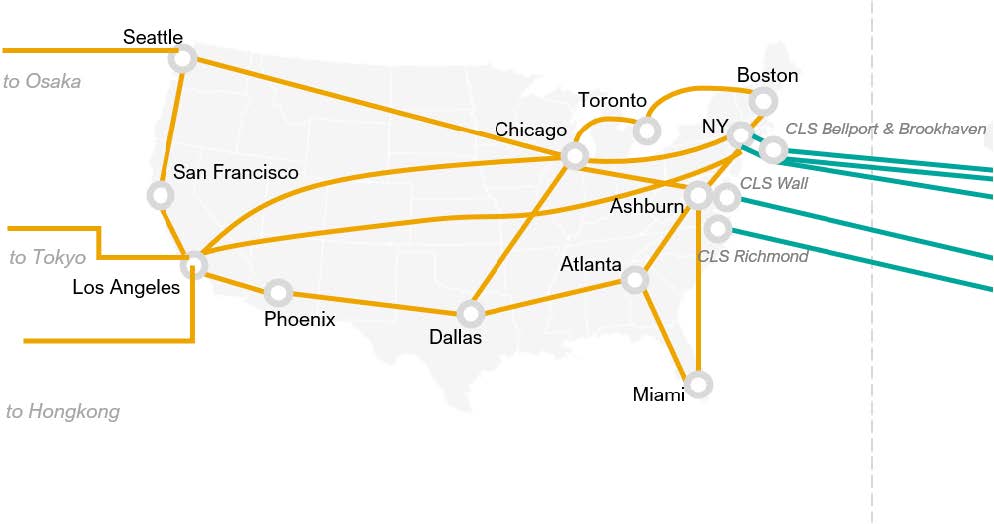

Figure 9. The North American Network

5. Network Access Types

Customer sites can be directly connected to this network using the following access types:

5.1 Colt Fibre

Offices located in buildings that are directly connected to the Colt network will be connected via Colt’s own fibre-optic infrastructure. Colt’s Metropolitan fibre networks deliver high capacity, high speed bandwidth services to Europe’s major business centres, which in turn are interconnected via the Colt long distance network (LDN) delivering high quality reliable services end-to-end.

5.2 Unbundled and Regulated Fibre

In a limited number of locations within Europe and Asia the provision of fibre optic infrastructure in the metropolitan area has been subject to regulation by governmental and regulatory bodies. Colt also uses this fibre unbundled local loop (ULL) to provide network services to customer sites, in conjunction with its own network infrastructure and customer site terminating equipment.

5.3 Partner access types

For sites not directly connected to the Colt network, Colt Wave services can be provided using a mixture of Colt and third-party other licensed operator (OLO) infrastructure and services. Colt interconnects with and manages more than 150 partners in order to connect sites that are outside the reach of the Colt network in Europe, Asia or in other global locations.
Colt will order a circuit or circuits from the OLO on the customer’s behalf, and customers will still be dealing directly with Colt at all times. Colt also takes responsibility for testing the interface between our network and the OLO’s circuit to ensure that the customer’s overall end-to-end Wave service operates seamlessly.
Customer sites can be connected through partner networks using the following access types:

5.3.1 Fibre

Colt can provide Off-Net fibre-optic network connectivity on request and where available by connecting the customer’s service to the fibre-optic infrastructure and services of several partners.

5.3.2 Leased lines (WDM)

Leased lines are circuits or a combination of circuits designated to be at the exclusive permanent disposal of a given customer. Colt can use technically compliant third-party optical services that are themselves provided on WDM platforms or ‘clear channel’ layer 1 optical Ethernet technologies to extend its own Wave services to off-net locations.
In the specific case of 1G, 10G LAN PHY, 100G LR4 and 400G FR4 services that use Ethernet interfaces, optical Ethernet services of the same presentation type can also be used to extend Colt Wave services to off-net sites. The use of such services is subject to Colt’s own technical validation process and inclusion in the list of services approved for use with Colt Wave.

Colt can also use Ethernet demarcation devices to provide sophisticated standards-based Operations Administration and Maintenance (OAM) end-to-end on services that have a 1G or 10G Ethernet presentation.

5.3.3 Dedicated Cloud Access (DCA) Wave

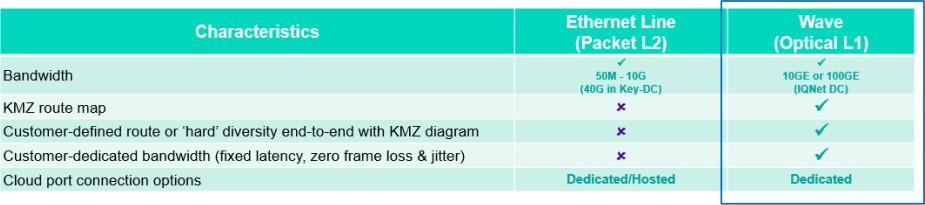

Wave services can also be used to connect to Google. Cloud connectivity on Wave is based on layer 1 optical connectivity and provides dedicated high bandwidth cloud connectivity up
to 100G over Colt’s extensive, wholly owned fibre end-to-end footprint. Specified KMZ path and option for customer-defined routes are supported. The Customer is responsible for establishing layer 3 connectivity into the CSP’s platform.

Other characteristics:

• Colt connectivity: Point-to-point connectivity
• Unprotected / protected service options
• Diversity options
• Encryption feature

6. Security

6.1 Colt

The physical security of our buildings is tightly controlled and access is strictly limited to authorised personnel only. All areas within Colt buildings are secured by means of an electronic access control system to ensure that access is controlled. All people must hold an appropriate pass card while on Colt premises. Non-Colt personnel are not allowed on Colt premises without specific authorisation and prior arrangement. Guests must be vouched for by a Colt host or verified by security in buildings.

6.2 Wave

Because Colt Wave services are separated at the OSI physical transmission layer, it is impossible for customers to intercept or send data to or from any other customer sites via their own access. Colt’s Wave services are delivered utilising a network resource that is reserved for that service and for each individual customer.

7. Service Delivery

7.1 New service order

A new service order is the initial provision of the service to the customer premises, including
the initial configuration of the network to the specification provided in the order form.

7.2 Modifying an existing service

Modifying an existing service consists of the subsequent enabling or disabling of service features, functions and interfaces as well as service changes following initial installation, which are chargeable items.

7.3 Modifying a Wave service

Following provision and installation of a Wave service, customers can ask Colt to enable additional features, functions and interfaces, and request changes to the service. The implementation of changes is chargeable, and some changes may mean that revised rental charges apply. Changes fall into two categories: A and B.

• Category A modifications – Regarded as a new provision in terms of lead times. These are change requests that require physical alternations to the equipment that delivers the service. Examples include changing the interface presentation or adding protection, which is regarded as a new provision in terms of lead times.
• Category B modifications – Require 10 working days lead time. These are configuration changes that can be carried out remotely and within normal working hours and include the following:

-Changing the network path where capacity is already available

-Modifying the service presentation between options that are of the same bandwidth and are supported by the same interface card and cabling types

7.3.1 Out-of-hours changes

Changes that need to be handled out-of-hours must be scheduled and approved in advance, and there is a two-week lead time for scheduling them. (This does not apply to emergency changes.) Ask a Colt Account Executive for more information.

7.3.2 Cessation of service

Cessation of service is within 60 working days from request by the customer. Request for cessation of service may be subject to a charge in accordance with Colt standard terms and conditions. Should the customer cancel their order during installation, Colt reserves the right to raise a charge.

7.4 Fast track installation

Fast Track allows customers to expedite delivery of their order and receive their service on a date specified by the customer (generally prior to the standard lead time), or, if this date is not possible, on the earliest possible date.
Fast Track installation is available for all On-Net sites in all Colt geographic locations. If Fast Track is possible, Colt will provide a Fast Track delivery date based on technical feasibility, which customers can accept or reject. If accepted, the Fast Track option incurs an extra charge in addition to the standard installation fee.
Consult a Colt Account Executive for more information.

7.5 Demarcation point

The demarcation point for Colt services is the customer interface at the Colt access equipment (normally at the base of the Colt cabinet). If customers require in-house cabling from the Colt cabinet to their equipment, this will be a chargeable service.
If Colt installs cabling on a customers’ behalf, the demarcation point remains the same: the base of the Colt cabinet. Colt is not responsible for fault-finding on the in-house cabling.

8. Service assurance

Colt provides a high level of service assurance:

• The core network is proactively monitored
• A local language help desk is available 24 x 7
• Colt Online provides a web-based portal that enables customers to view bills and trouble tickets

8.1 Customer service

Colt has a high quality European fibre network that enables the provision of an annual target service availability. The target availability depends on the service taken and the location of customer sites. The fault help desk is available 24 hours a day, seven days a week.
Customers can report a fault at any time by contacting the Customer Service Centre and speaking to a representative in their local language.
When a service is provisioned, customers are issued with a unique service reference for each circuit that they should always use when reporting faults. The contact number for fault reporting is specified in the handover pack.

8.2 Colt Online

Colt Online is an intuitive, user-friendly application enabling new and existing Colt customers to interact with Colt via a secure Internet connection without the need to speak to a Customer Service Agent or Account Executive.
Every Colt Online customer is provided with an administrator account for a defined user within their organisation. This administrator has full access to the available features for all their customer accounts and sub-accounts, including:

• Search and view any bill from the previous six months in .pdf format (not available in Switzerland due to data protection legislation)
• View the status of any order in the delivery process
• View the status of any ticket (covering faults, enquiries, service requests) in real-time
• Search and view all live services
• View an account dashboard, summarising the four features above

8.3 Service Monitoring

The Colt network is proactively monitored and maintained by Colt.

8.4 Automated Monitoring and Notification

Colt Wave services include an optional proactive notification service, which means that Colt proactively monitors the service and can notify customers of any service-affecting faults via e-mail or SMS. Proactive Fault Notification is a customer selectable service feature.
Please refer to the section 3.13 for specific details on where this feature is available.

8.5 Planned Maintenance

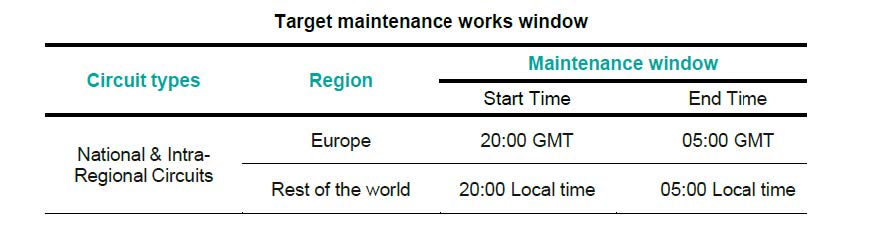

In order to ensure performance and security for all customers, Colt occasionally performs maintenance works that may cause customer’s service being unavailable. Please refer to the SLA documents for more details on the maintenance works. Unless a critical intervention is required, Colt will endeavour to have the maintenance works occur during non-working hours as follows

Please note

• Colt will endeavour to accommodate the Maintenance Window as per the above table. However, Colt cannot guarantee it as some works will require longer windows or due to exceptions such as Government or local regulations and other reasons beyond Colt’s Control.
• The above table does not cover Planned maintenance of network components owned by 3rd party and Colt will inform the Customer such maintenance windows as and when Colt is made aware of such works.
• The above maintenance window is applicable for both Service Affecting and non- service affecting works

9. Commercials

9.1 Billing

The customer bill is available on paper or CD-ROM and details:

• Service installation charges
• Service rental charges
• Discounts, where applicable
• Other charges and credits

Customers are provided with a single freephone point of contact for all service enquiries including billing enquiries. For detailed billing enquiries, customers can be transferred to a specialised billing department.
Charges will be applied per site based on the bandwidth selected and the location of the site.

9.2 Installation charges

One-off installation charges will be billed in full in the first invoice issued after installation. This will usually be within 30 days of service delivery. In addition, any moves, changes or modifications will incur one-off charges.

9.3 Rental charges

Customers can opt to pay monthly, quarterly or annually. Where no option is indicated, monthly billing will be set as default. All rental owed under the service will be payable in advance.

9.4 Additional features

The charges for enhanced resilience options are built into the service charges.

10. Performance Objectives

The performance objectives of the service are included in the Service Level Agreement (SLA).

10.1 Service Availability

Service availability is defined in full in the SLA, which is a separate document and includes details of the rebates if the targets are not met.

10.2 Fault Handling

Faults can be reported via the local telephone numbers as described in the handover pack, 24 hours a day, 7 days a week. The period when the service was not available will be measured from the time such condition is reported by the customer and a trouble ticket is opened by Colt to the point when Colt resolves the trouble ticket and informs the customer that the service is available. The customer shall be deemed to have been informed of service availability if Colt has unsuccessfully tried to contact the customer. Fault handling is defined in full in the Service Level Agreement (SLA).

10.3 Round Trip Delay

Round Trip Delay (RTD) is the time taken for layer1 traffic to traverse from a source site to a destination site and back again.
The RTD for Colt Wave Services are calculated on an individual circuit basis. Upon customer request, Colt will provide an estimate of the expected RTD for a given service as part of the solution design during the Pre-Sales process. At customer request this can be attached to the service order. An RTD estimate attached to a service order constitutes the RTD target for that individual service.
The RTD handling is defined in full in the Service Level Agreement (SLA).

11. Colt Professional Services

Colt Professional Services is a team of highly focused experts dedicated to designing and managing solutions which support business transformation for our customers. Our consultants are available to:

• Conduct thorough reviews of a customer’s current and future communications requirements
• Design complex projects to exacting standards
• Manage project implementations
• Ensure the service is being delivered to customer expectations

Colt has expertise in four areas: Project Management, Service Delivery, Consulting Services and Design Services. For full details of the services available, please contact a Colt Account Executive.

12. Certifications and industry standards

Colt is dedicated to ensuring that our management systems adhere to the widely accepted International Standards Organisation (ISO) and British Standards Institute (BSI) standards. Colt holds the following certifications:

• ISO 14001 – Internationally accepted standard that sets out a framework of essential elements for putting an effective Environmental Management System (EMS) in place. The standard is designed to address the delicate balance between maintaining profitability and reducing environmental impact. This certificate is held for all Colt countries and helps us to identify the impacts that our operations have on the environment and then plan how we will reduce our most significant ones. It also ensures that we comply with all environmental regulations in each country we operate.
• ISO 9001 – The world’s most established quality framework that sets the standard not only for quality management systems, but management systems in general. Colt holds this certification for the provision of service management for all Colt Data, Voice and Network Services, plus management of the Colt core network, backbone, switches, routers, infrastructure and associated systems
• ISO/IEC 27001 – The only auditable international standard which defines the requirements for an Information Security Management System (ISMS). The standard is designed to ensure the selection of adequate and proportionate security controls have been established and also formally specifies a management system Information Security Management System (ISMS) that is intended to bring information security under explicit management control. Colt holds this certification for our Customer Managed Service (CMS) Solutions from European Data Centres.
• This includes customer European network monitoring, management and support services. In Colt India, this includes billing, revenue services and the Financial Shared Service Centre (FSSC). In Colt Spain, this includes Colocation Services in non-Data Centre locations.

13. Colt Online

Search and view any bill from the previous six months in .pdf format*

Not available in Switzerland due to data protection legislation.

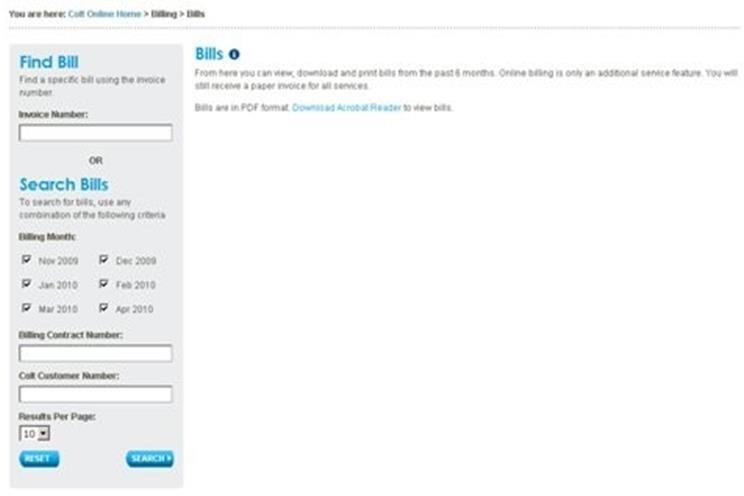

Figure 10: Find Bills

View the status of any order in the delivery process

Figure 11: Order Details

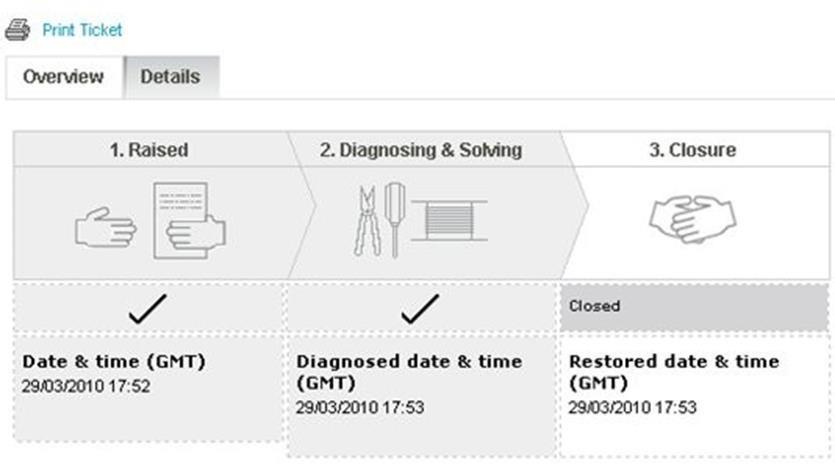

View the status of any ticket (covering faults, enquiries, service requests) in real-time

Figure 12: Ticket Status

Search and view all live services

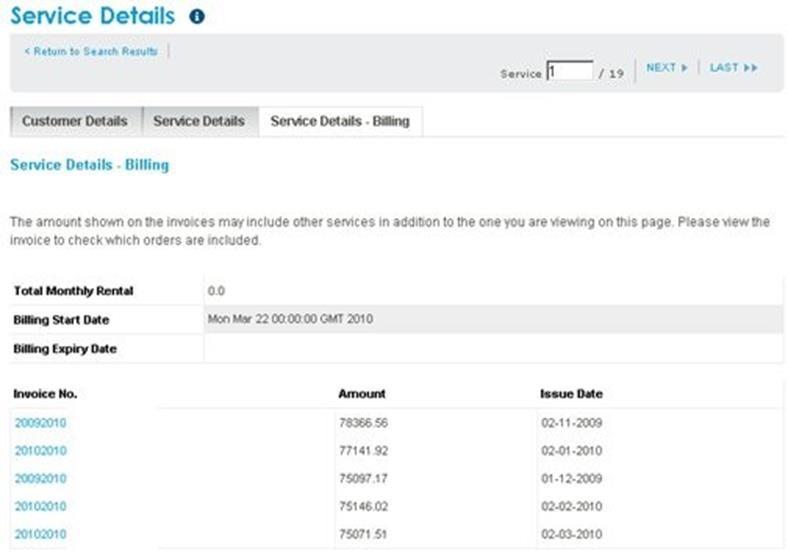

Figure 13: Service Details

View an account dashboard, summarising the four features above

14 Service Delivery Timeframe

Figure 14: Service delivery timeframes

15 Order to Delivery Overview

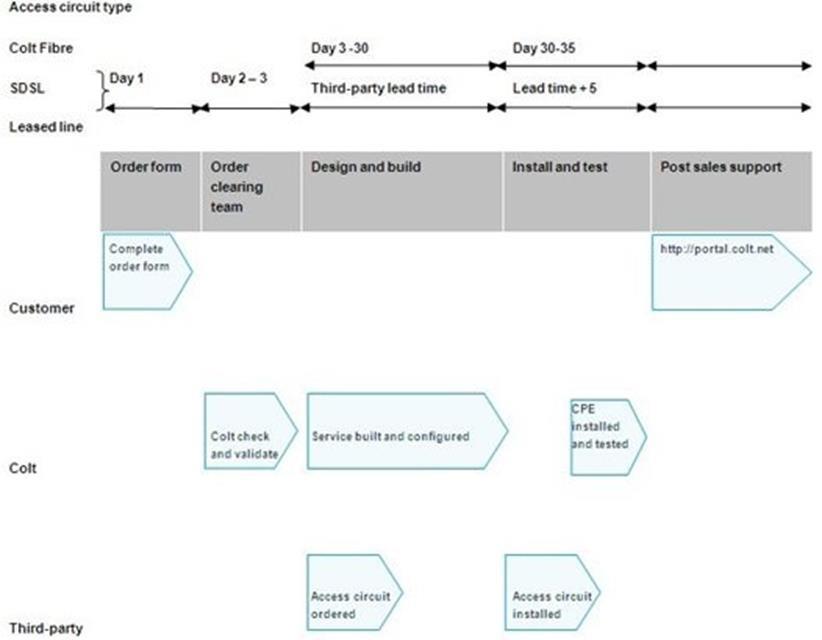

Colt Contact	Timeline of Activities
Contact Name Tel No:	Step 1 Day 1 Order Form completed Working with a sales contact, an order is raised for the service
	Step 2 Day 2 -3 Order validated The customer order is now validated by Colt and any outstanding issues or questions dealt with. Customers will be sent a letter confirming receipt and acceptance of their order
Installation Process	Step 3 Design and build The service is configured along with any optional features that may have been requested. The access circuit will be ordered and customers will be sent a letter confirming the Colt installation date
	Step 4 (a) Access circuit installed A technician is at the customer’s site to complete installation of the access circuit. Please ensure the technician is given access to the customer premises
	Step 4 (b) Equipment installed Customer equipment is installed by Colt. The access circuit and Internet services are tested
	Step 5 Activation and porting Service is ready for activation and (if required) numbers are ported. Customers will be given a handover pack which provides details of their service

Note: This document is not legally binding.
